Managing slurry efficiently is an important part of modern farming, particularly when working with large or deep lagoons and umbilical spreading systems. Having the right slurry mixing and pumping equipment can help reduce downtime, improve pumping performance and make the most of available tractor power.
The SlurryKat Skorpion range is designed to handle demanding slurry applications, combining powerful mixing and pumping capabilities with practical features designed for farmers and contractors in NZ.
The range includes both Mini and Mega Skorpion models, providing options for different tractor sizes, lagoon depths and pumping requirements.
What Is the SlurryKat Skorpion?
The SlurryKat Skorpion is a heavy-duty slurry mixing and pumping system designed to thoroughly mix slurry and efficiently feed it into an umbilical system for spreading.
Built for demanding agricultural applications, the Skorpion range is designed to work in deep lagoons and challenging slurry conditions while helping minimise tractor strain and downtime.
Depending on the model and configuration, the Skorpion can be equipped with a powerful Doda pump and a submersible force-feeding turbo pump. This combination helps move large volumes of slurry efficiently, making the system particularly useful for contractors and farms handling significant slurry volumes.
Mini Skorpion: Compact Power for Medium-Sized Tractors
The Mini Skorpion range provides a more compact solution for medium-sized tractors while retaining the powerful mixing and pumping capabilities associated with the Skorpion system.
The Mini Skorpion uses a Doda HD35 pump and requires a tractor of approximately 250 HP to operate. Its compact design makes it a versatile option for farms and contractors that need high-performance slurry equipment without the size of the larger Mega Skorpion models.
The Mini Skorpion can also be supplied with a submersible force-feeding turbo pump for applications involving deeper lagoons.
For shallower applications, the pump can be supplied without the turbo pump.
Mega Skorpion: Built for Deep Lagoons
For larger and more demanding slurry applications, the Mega Skorpion is designed to handle deep lagoons and high-volume pumping.

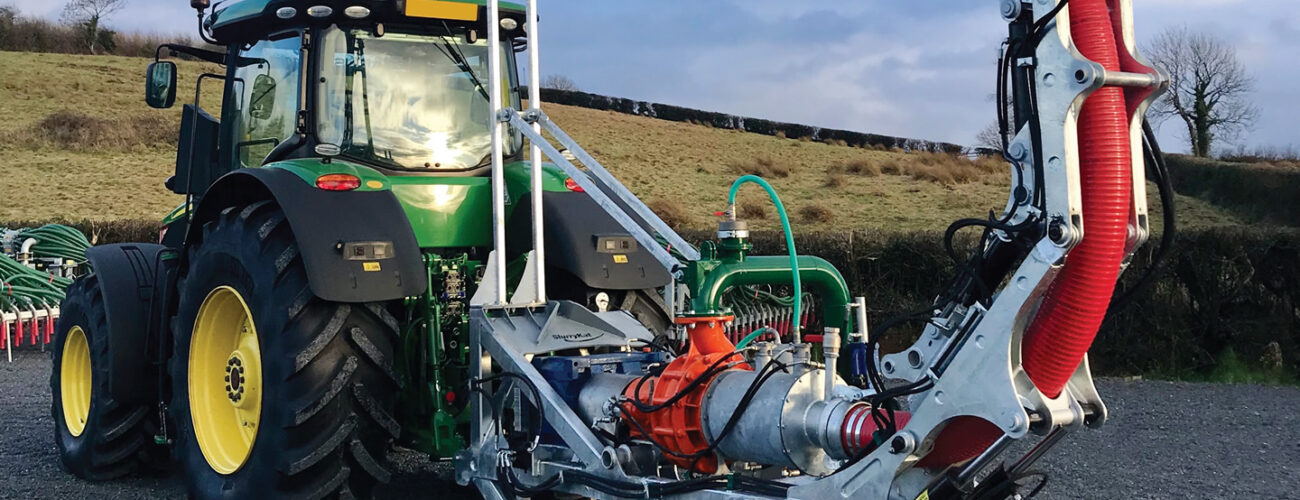

The Mega Skorpion can be fitted with a Doda AFI HD45 pump and an 8-inch submersible hydraulic pump positioned at the bottom of the Skorpion. The submersible pump provides force feeding to the Doda 45 pump, helping the system efficiently draw slurry from deep lagoons.
This configuration is specifically designed for emptying lagoons up to approximately 18 metres (60 feet) deep and feeding umbilical spreading systems.
An additional 6-metre suction line can also be added to the standard configuration where extra depth is required.
High-Volume Slurry Pumping
One of the key advantages of the Skorpion range is its ability to move large volumes of slurry efficiently.
The Mega Skorpion can achieve flow rates of up to 740 m³ per hour, depending on the configuration and operating conditions.
Another Skorpion configuration features an 8-inch turbo fill system and is capable of pumping up to 350 m³ per hour. This high-capacity pumping performance makes the Skorpion well suited to large-scale slurry handling where speed and efficiency are essential.
By combining high-volume pumping with powerful mixing, the Skorpion helps keep lagoons thoroughly mixed and ready for spreading.
Automatic Folding for Faster Setup
Time spent setting up equipment can quickly add up during busy slurry spreading periods. The Skorpion range is designed with this in mind.
The system features fully automatic folding and unfolding, allowing it to move from transport position into working position in less than two minutes.
The transport position can also be adjusted to suit different tractor sizes. Transport height is approximately 4 metres, depending on the tractor and configuration.
This allows operators to spend less time preparing the equipment and more time getting the job done.
Built-In Mixing and Recirculation
Effective slurry management starts with thorough mixing.
The Skorpion is fitted as standard with a circulation system and low-ejection jetting nozzle on the lower section of the boom. This helps circulate slurry within the lagoon and maintain an even mixture before and during pumping.
A headland management system is also available, allowing automatic recirculation and mixing to help maintain consistent slurry flow during operation.
For particularly challenging applications, additional mixing equipment can be specified, including a rotating mixing gun with vertical tilt.
Key Skorpion Options
The Skorpion range can be configured to suit different farms, lagoons and operating requirements.
Available options include:
- Submersible force-feeding turbo pump for deep lagoons
- Rotating mixing gun with vertical tilt
- Headland management system
- Longer boom for deeper lagoons
- ISOBUS control system
- Additional 6-metre suction line for increased pumping depth
- 360-degree outlet
- Full hydraulic fill arm
- Heavy-duty primer pump
These options allow the Skorpion to be configured around the specific requirements of the operation rather than relying on a one-size-fits-all setup.
Designed for Tough Slurry Conditions in NZ
Slurry can be challenging to handle, particularly when working with deep lagoons and large volumes of material. The Skorpion range is built with heavy-duty agricultural applications in mind.
Its combination of powerful pumps, hydraulic systems and mixing capabilities is designed to keep slurry moving efficiently, even in demanding conditions.
For farmers and contractors, reliable slurry pumping equipment can mean less downtime, fewer interruptions and more efficient use of available machinery.
Mini vs Mega Skorpion: Which Is Right for You?
Choosing between the Mini and Mega Skorpion will depend on the size of the tractor, lagoon depth and required pumping capacity.
The Mini Skorpion is designed around the Doda HD35 pump and is suited to medium-sized tractors, with a requirement of approximately 250 HP. It provides a compact and versatile solution for a range of slurry pumping applications.
The Mega Skorpion, meanwhile, is designed for larger-scale applications and deeper lagoons. With the Doda AFI HD45 pump, submersible force-feeding system and flow rates of up to 740 m³ per hour, it is suited to demanding high-volume slurry pumping and deep-lagoon applications.
The right configuration ultimately depends on your lagoon, tractor and spreading setup.
Efficient Slurry Mixing and Pumping with SlurryKat
Whether you’re managing a farm lagoon or providing slurry spreading services as a contractor, having reliable mixing and pumping equipment can make a significant difference to efficiency.
The SlurryKat Skorpion Mini and Mega range combines high-capacity pumping, powerful mixing and practical automation to help keep slurry moving and ready for spreading.
From the compact Mini Skorpion with a Doda HD35 pump to the larger Mega Skorpion with a Doda AFI HD45 pump, there is a configuration to suit a wide range of slurry handling requirements.
With features such as automatic folding, force-feeding turbo pumps, hydraulic fill systems, headland management and ISOBUS control, the Skorpion range is designed to deliver efficient performance where it matters most.
If you’re looking for a high-performance slurry mixer and pumping system for deep lagoons, umbilical spreading or high-volume slurry handling, the SlurryKat Skorpion range offers a powerful and versatile solution.
Find the Right SlurryKat Skorpion for Your Operation
Looking to improve slurry mixing and pumping efficiency? Brownrigg Agri Gear supplies the SlurryKat Skorpion range in NZ, including Mini and Mega configurations designed for a variety of tractor sizes, lagoon depths and pumping requirements. Whether you need a compact solution for medium-sized tractors or a high-capacity system for deep lagoons and umbilical spreading, our team can help you find the right setup for your operation. Get in touch with Brownrigg Agri Gear today to discuss your requirements and find out more about the SlurryKat Skorpion range.
